Small Sensor size Up to 4×

Product Attributes :

FEATURES

Actual measured within full range of DOF , full rangeof FOV, and full range of wave length

Distortion:<0.05% Telecentricity:<0.05°

Options between high resolution and deep DOF areavailable

TG+ multi-layer coating, high transmittance

High cost performance, suitable for systems used forbatch testing and inspection

Customized aperture is available

Industrial grade waterproofing

Product Description

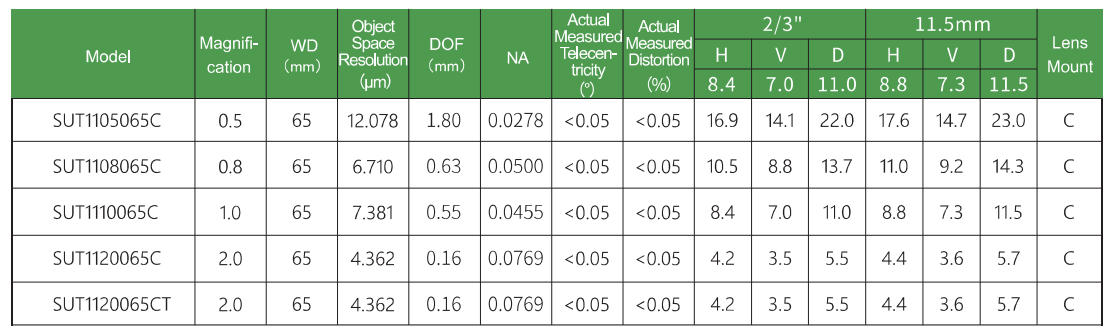

SPECIFICATIONS ON LENS SERIES WITH HIGH RESOLUTION

Sensor size:2/3"

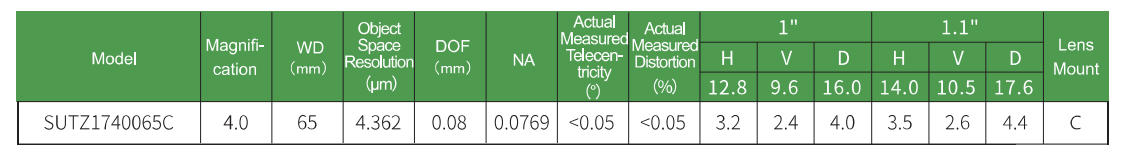

Sensor size:1"

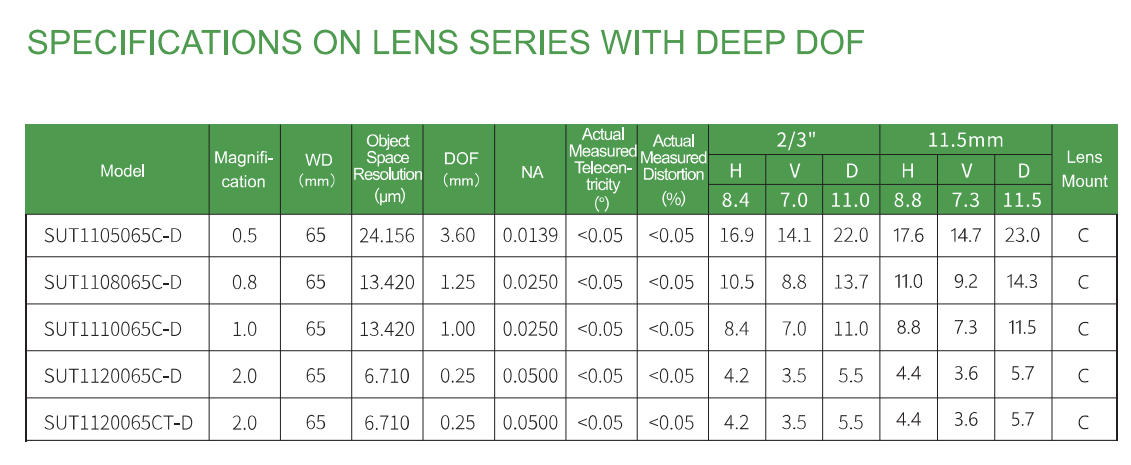

SPECIFICATIONS ON LENS SERIES WITH DEEP DOF

Sensor size:2/3"

Online Inquiry

Subject

Contact Person*

Email*

TEL

Message*

Verification Code*

All fields with an * are required.

Our factory in China was established in 2018 and currently employs 42 staff members. We utilize semi-automated production methods. Our core products include the STS series bi-telecentric lenses, the SUT series telecentric lenses, and the SYG series telecentric light sources. At present, our production capacity reaches 2,000 units per month, and our products have been exported to 13 countries. For standard products, the average lead time is 7 days, while for customized products, the lead time ranges from 1 to 3 months, depending on specific requirements.

Contact Person： Vivian Lau

Tel：+86 19951305790

WhatsApp: +86 15250007018

E-mail: abroadsales8a@carlbasson.com

Fax：0081-3-6205-4082

Add：6F Imonhigashiueno Building 3-1-10, Higashiueno, Taito-ku, Tokyo
