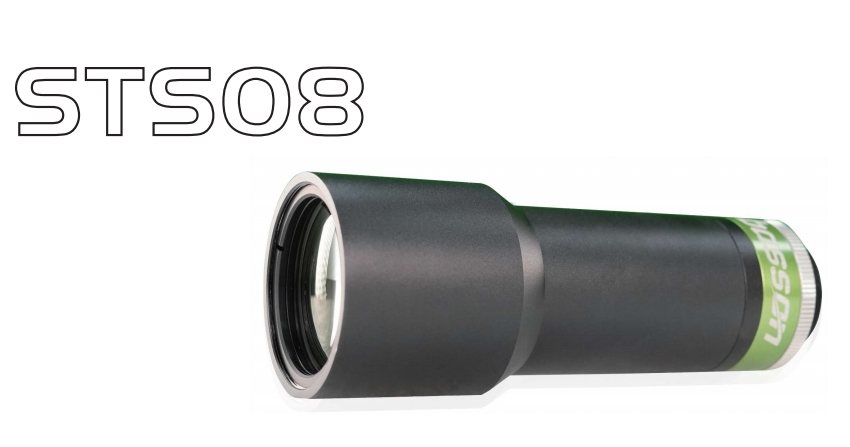

STS08 Series for 1/2
With high telecentricity and low distortion, BASSON bi-telecentric lenses are mainly applied to precision measurement and high-precision visual positioning fields.

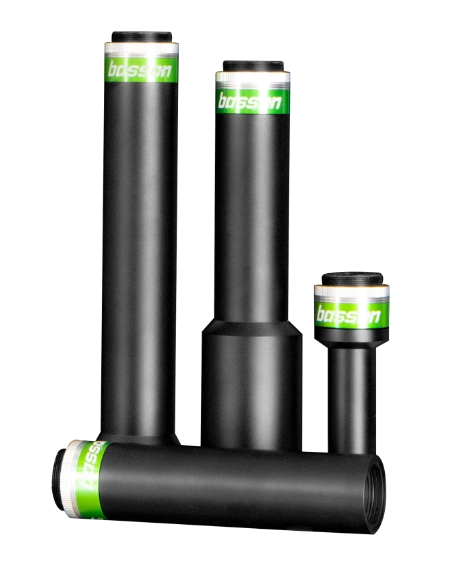

BASSON STS08 Series Standard Bi-telecentric Lenses are standard C-mount lenses, available for industrial cameras with maximum sensor size of 1/2” (diagonal of 8mm).
Features
lActual measured with full range of DOF, full range of FOV, and full range of wave length
lAvailable for Industrial Cameras with Sensor Size from 1/3” to 35Full
lLarge FOV from 11.5mm-315mm
lDistortion: <0.05% Telecentricity: <0.05°
lTG+ multi-layer coating, high transmittance

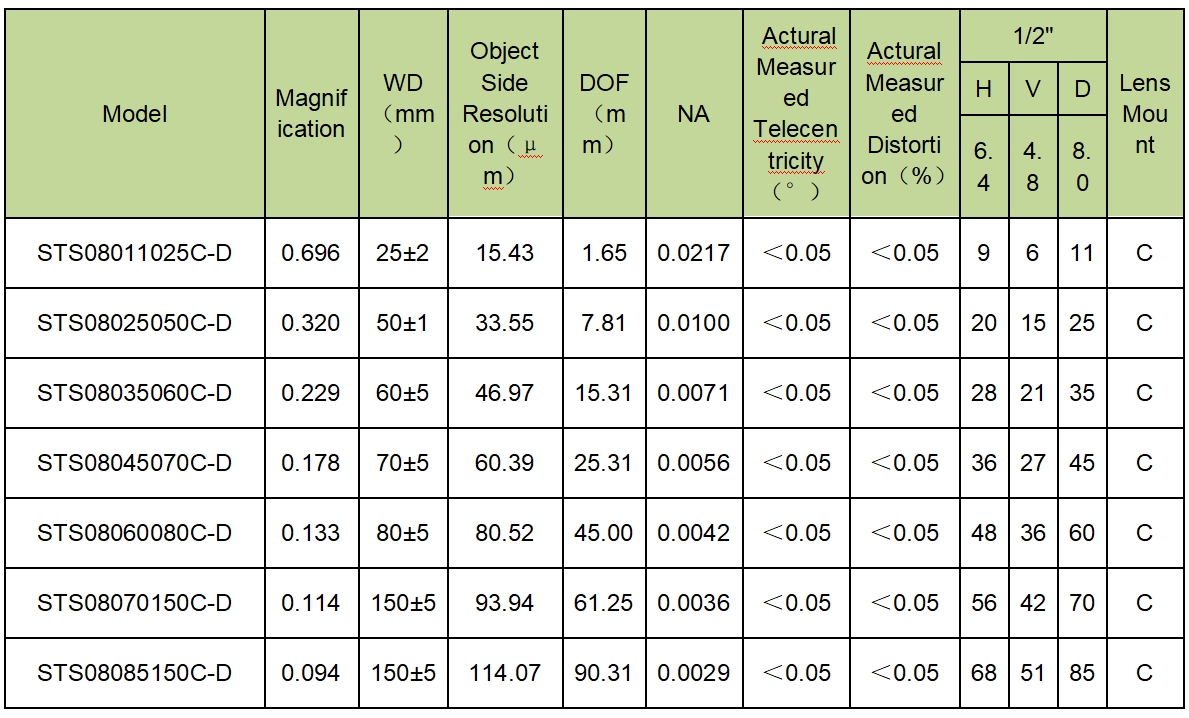

lOptions between high resolution and deep DOF are available
lCustomized aperture is available
lWorking distance can be adjusted within certain limits
lIndustrial grade waterproofing

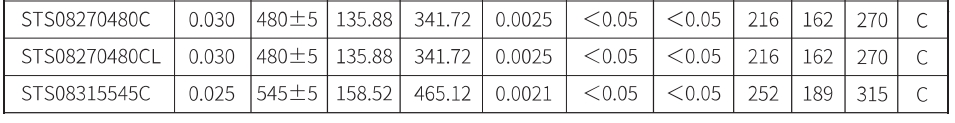

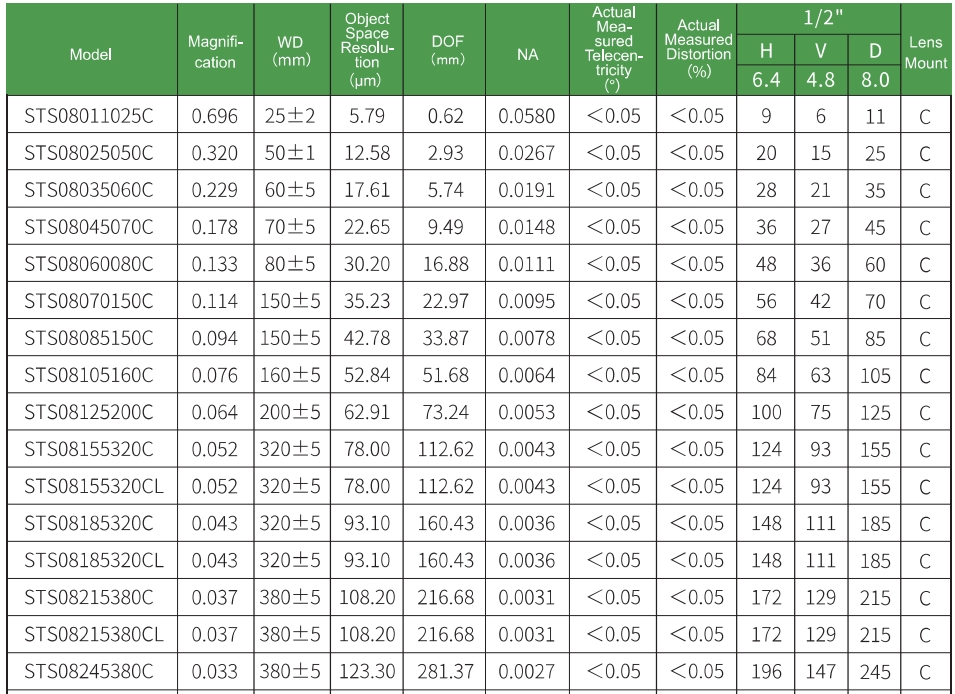

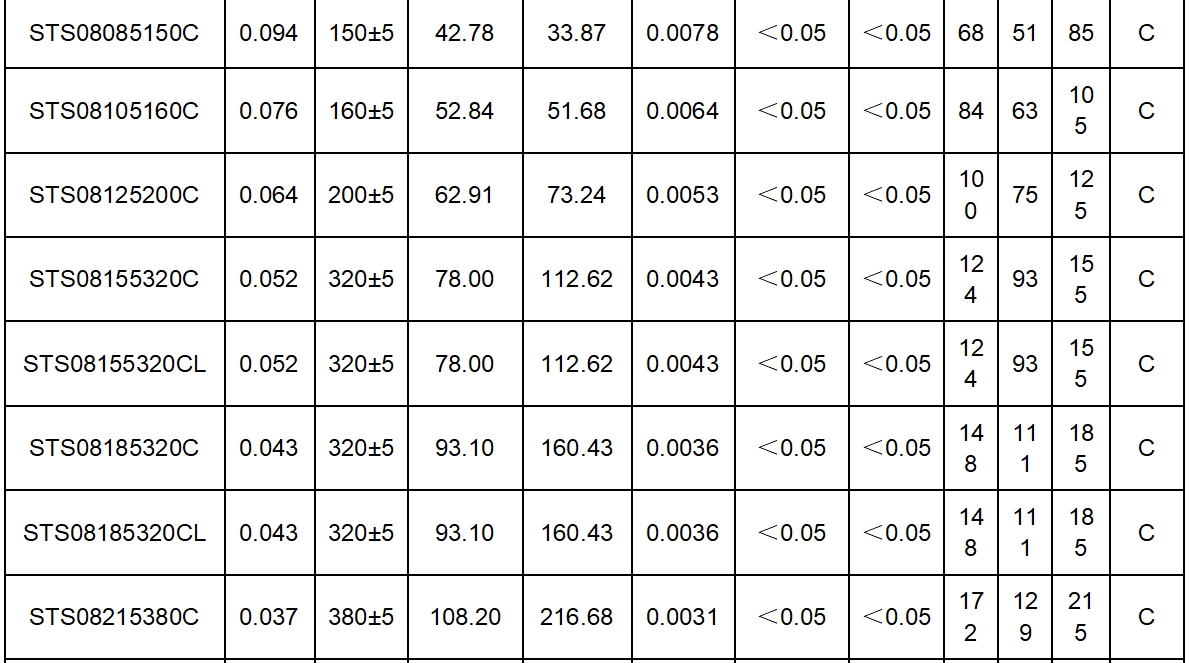

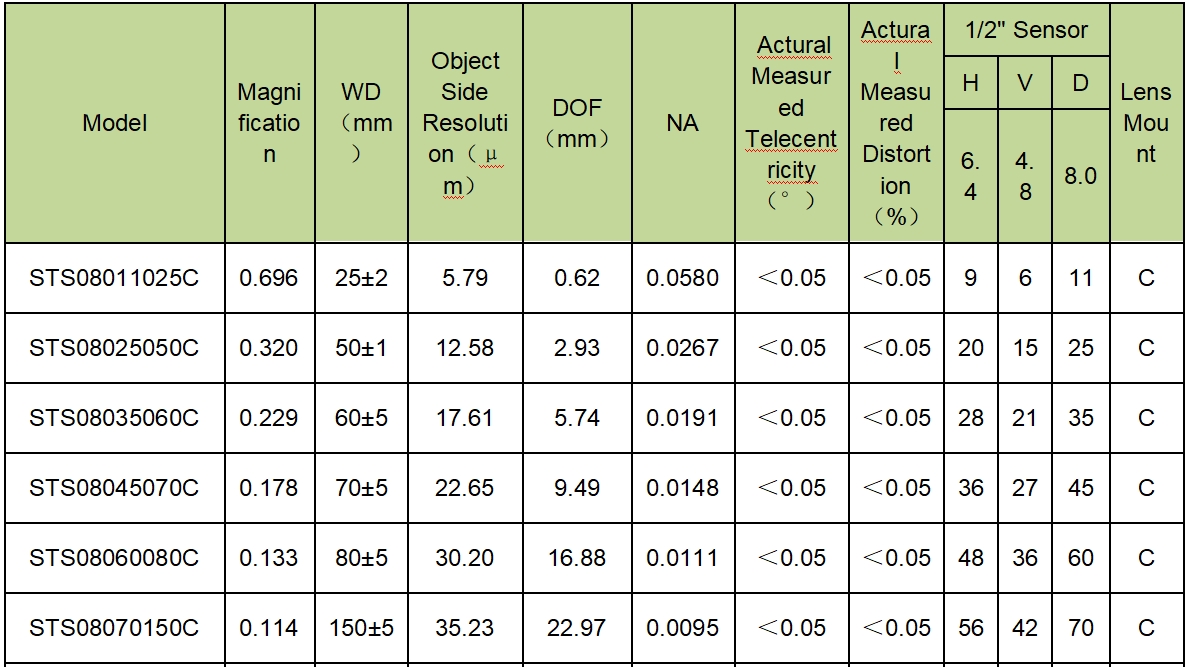

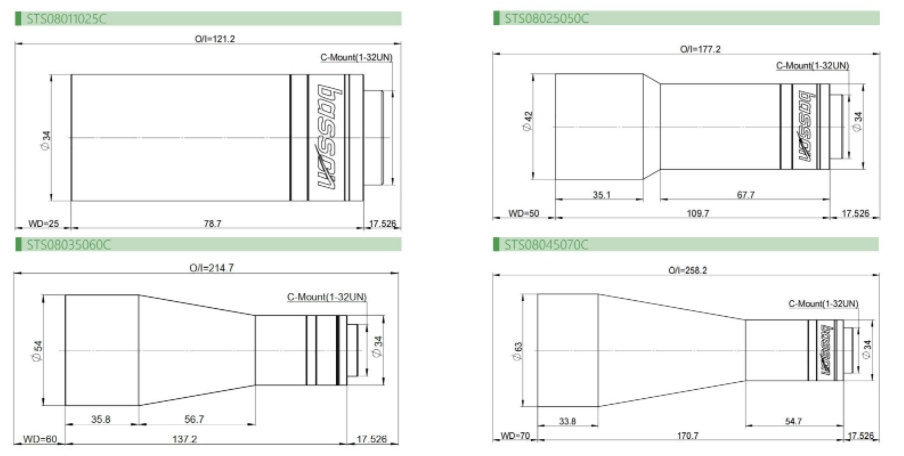

Version No.1 for High Resolution
