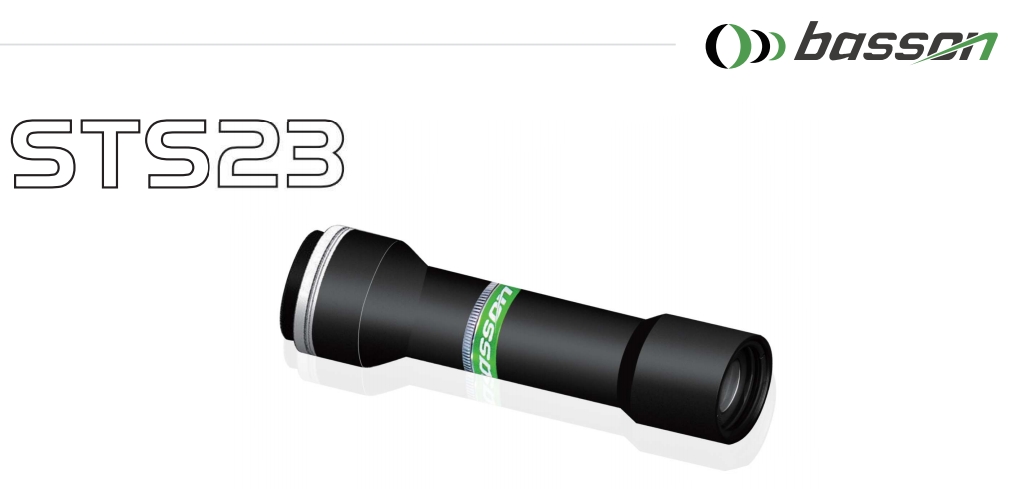

Up to 4/3" Sensors

Product Attributes :

lActual measured with full range of DOF, full range of FOV, and full range of wave length

lAvailable for Industrial Cameras with Sensor Size of 4/3"

lLarge FOV from 11.5mm-315mm

lDistortion: <0.05% Telecentricity: <0.05°

lTG+ multi-layer coating, high transmittance

lOptions between high resolution and deep DOF are available

lCustomized aperture is available

lWorking distance can be adjusted within certain limits

lIndustrial grade waterproofing

Product Description

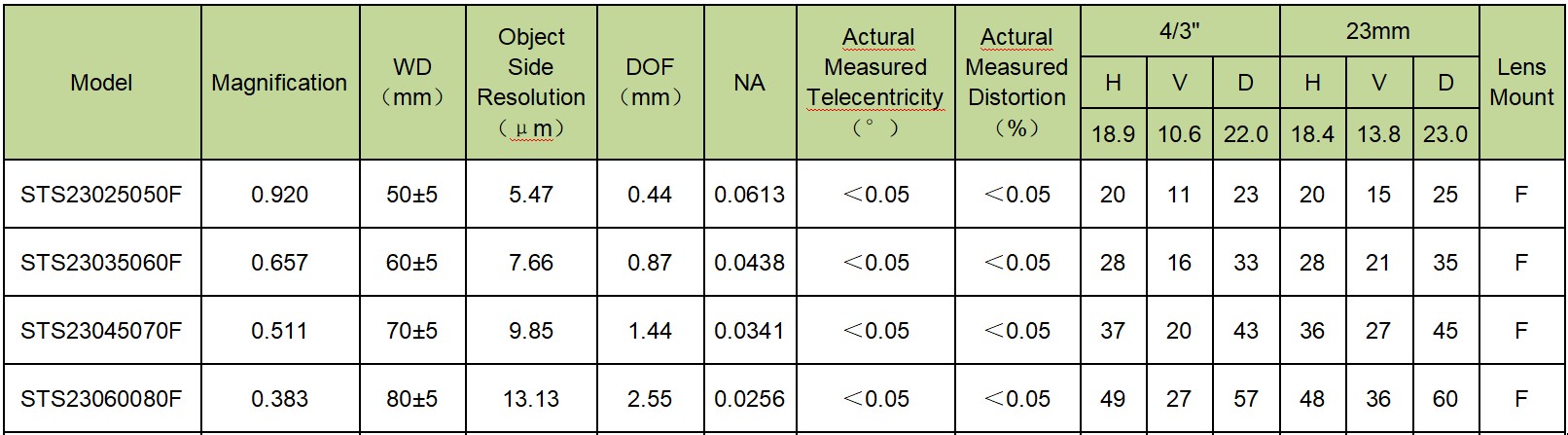

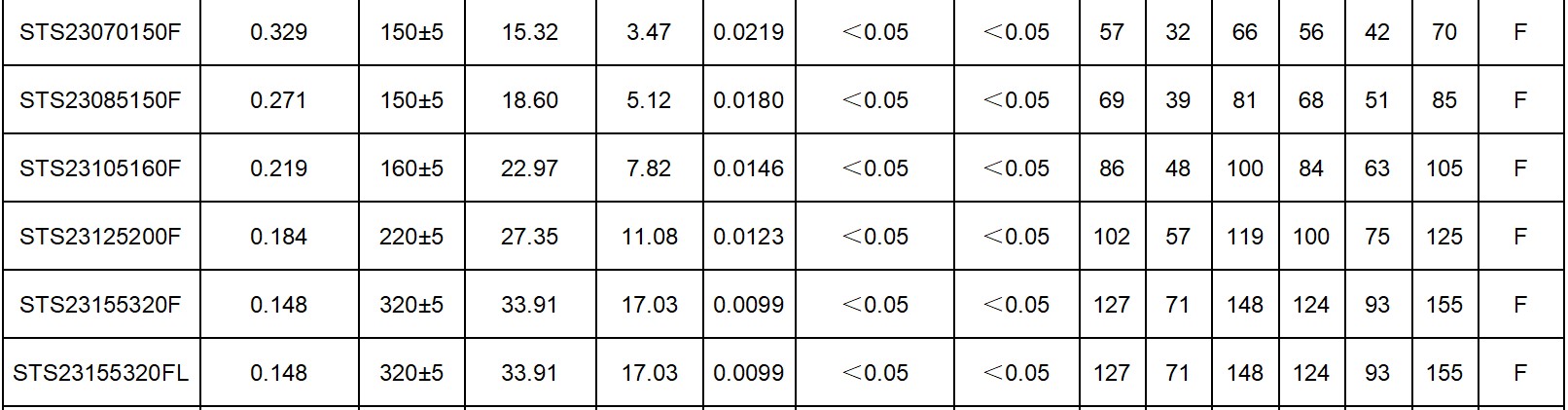

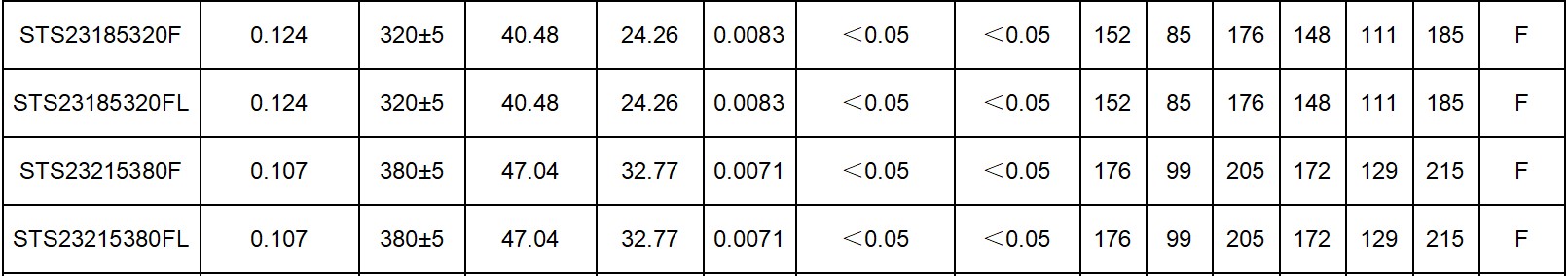

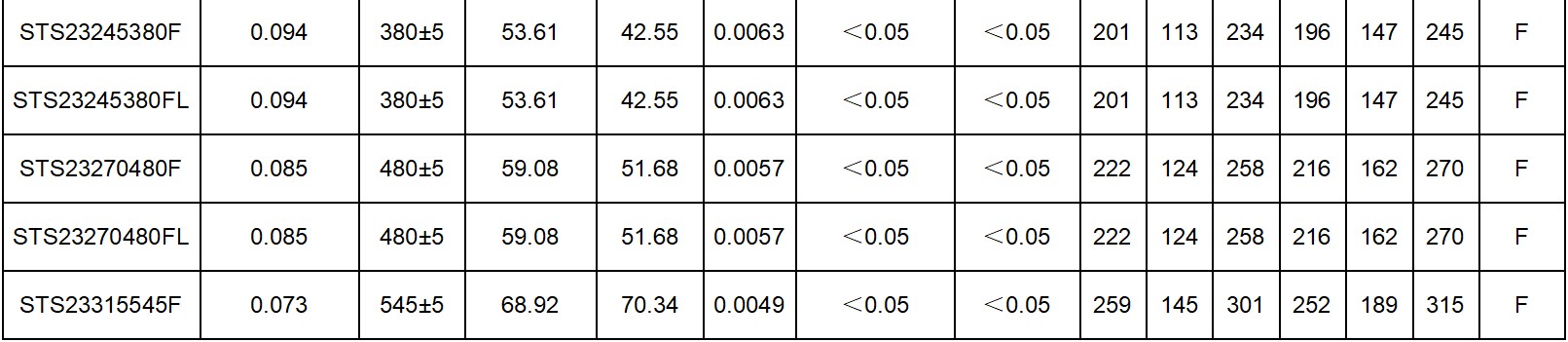

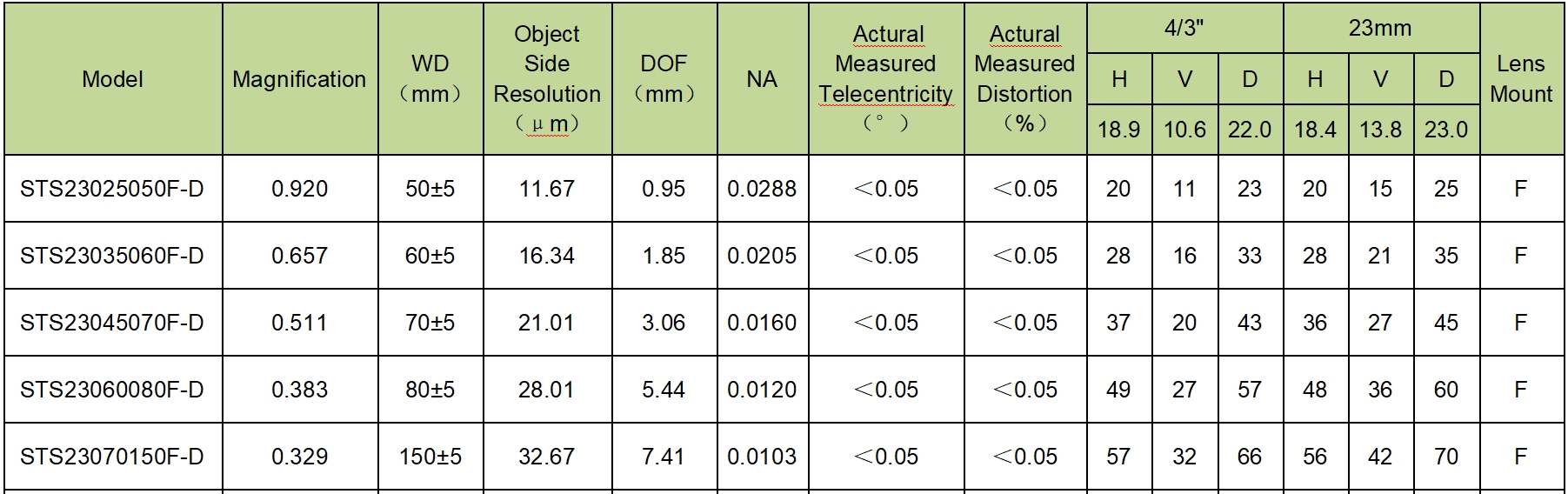

Version 1 for lenses with High Resolution

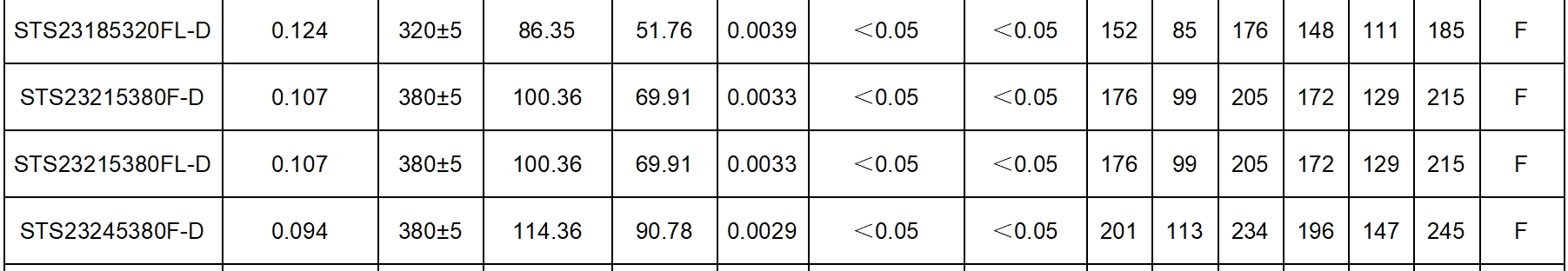

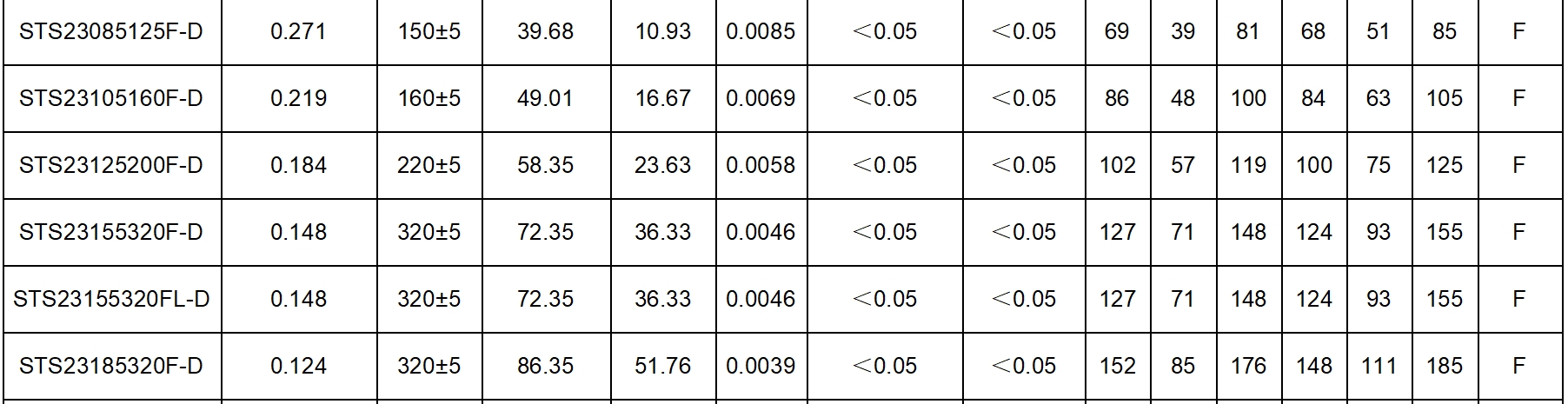

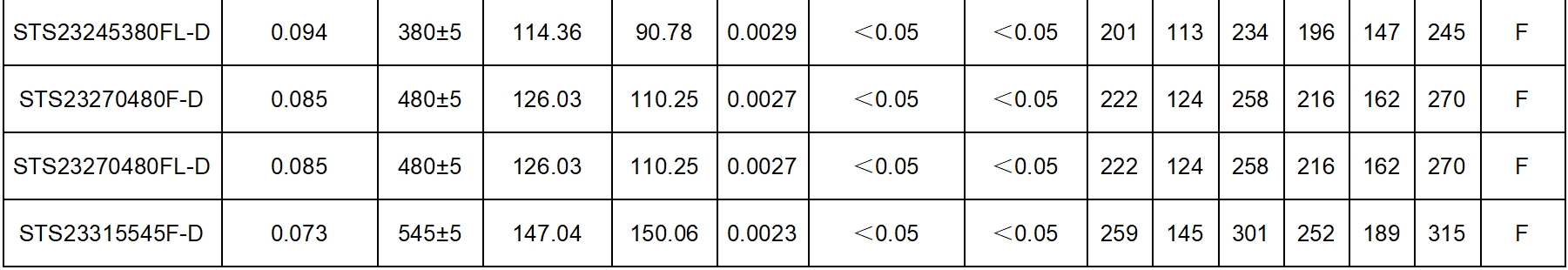

Version 2 for Lenses with Deep DOF
