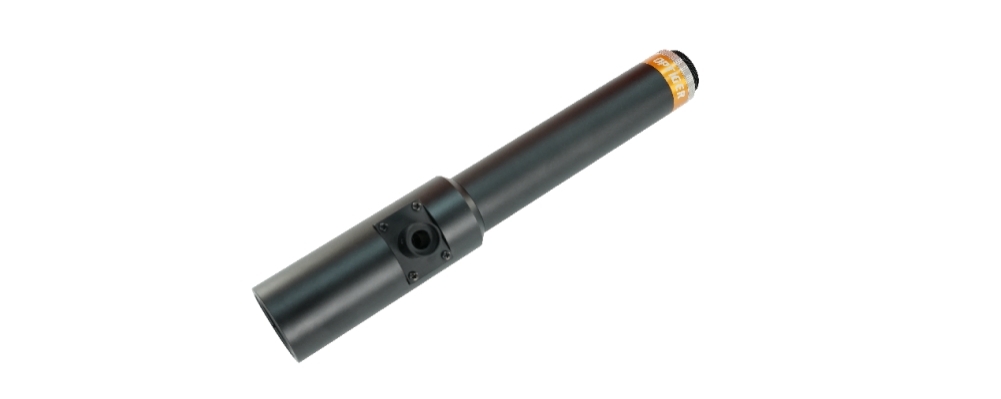

OTL11.5-100-110CT
Features
1.Actual measured with full range of DOF, full range of FOV, and full range of wave length
2.Available for Industrial Cameras with 2/3" Sensor Size
3.Large FOV from 11.5mm-315mm
4.Distortion: <0.05% Telecentricity: <0.05°
5.TG+ multi-layer coating, high transmittance
6.Options between high resolution and deep DOF are available
7.Customized aperture is available
8.Working distance can be adjusted within certain limits
9.Industrial grade waterproofing

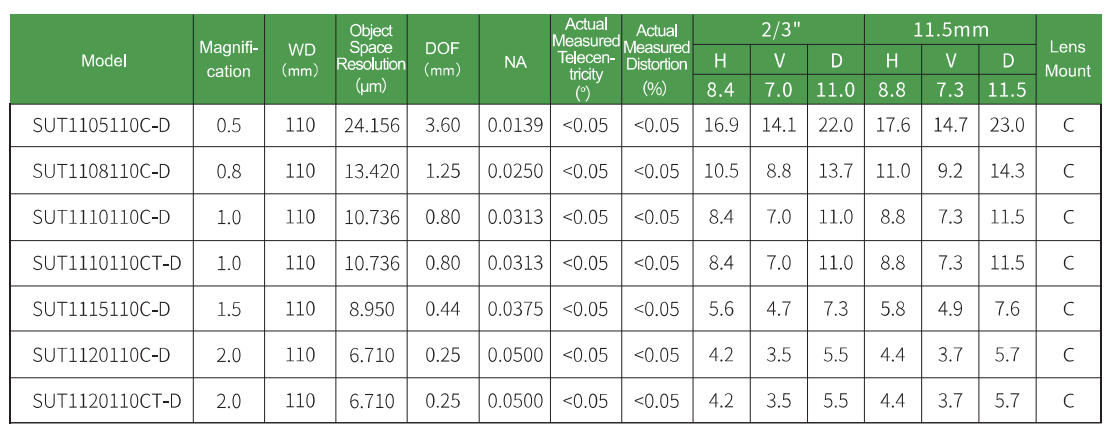

Data
|
Type |
Lenses with High Resolution |
||
|
Model |
OTL11.5-100-110CT |
||
|
Max. FOV（mm） |
1.15 |
||
|
Magnification |
10.0 |
||
|
Working Distance（mm） |
110 |
||
|
2/3” |
H |
8.4 |
0.8 |
|
V |
7.0 |
0.7 |
|
|
D |
11.0 |
1.1 |
|
|
11.5mm |
H |
9.2 |
0.8 |
|
V |
6.9 |
0.7 |
|
|
D |
11.5 |
1.1 |
|
|
Effective F number |
48 |
||
|
Object Side Resolution（μm） |
3.221 |
||
|
DOF（mm） |
0.038 |
||
|
Measured Telecentricity（°） |
<0.05 |
||
|
Measured Distortion（%） |
<0.05 |
||
|
Lens Mount |
C |
||

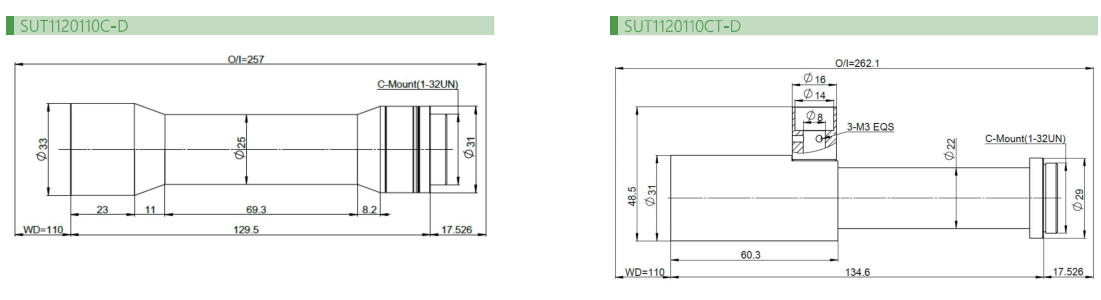

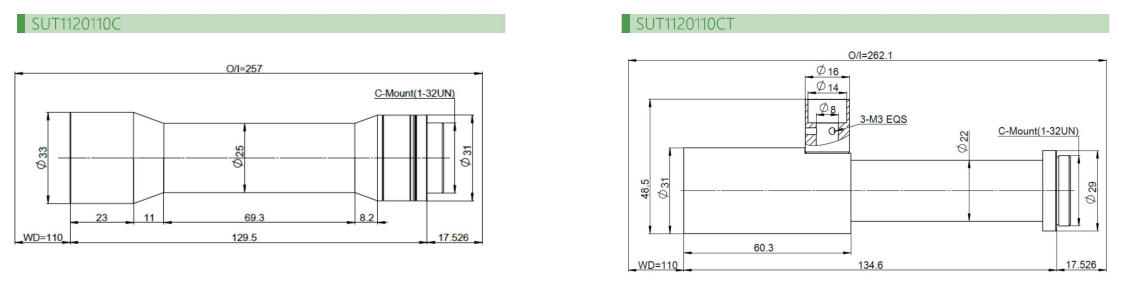

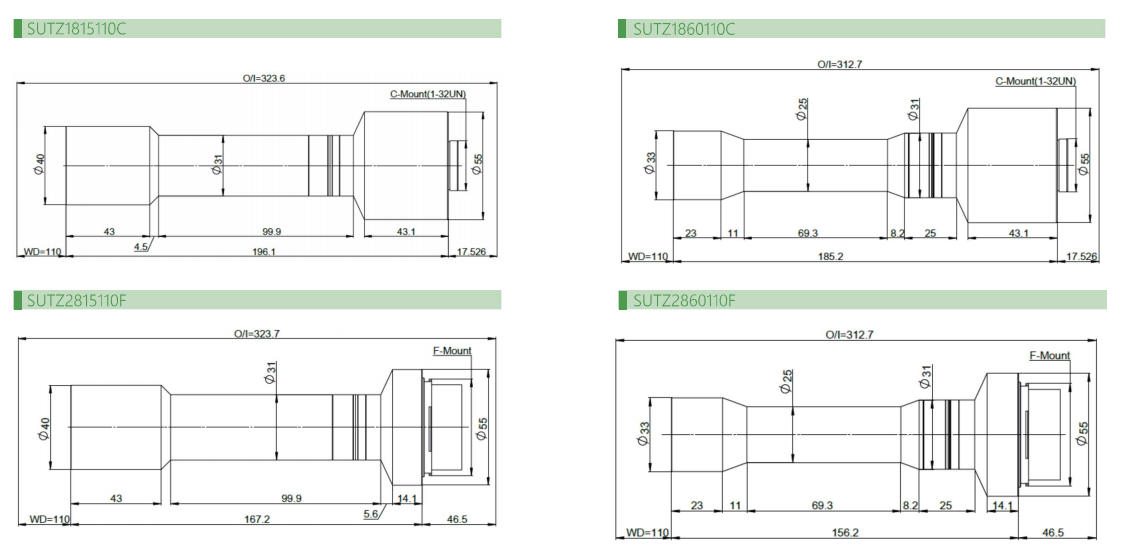

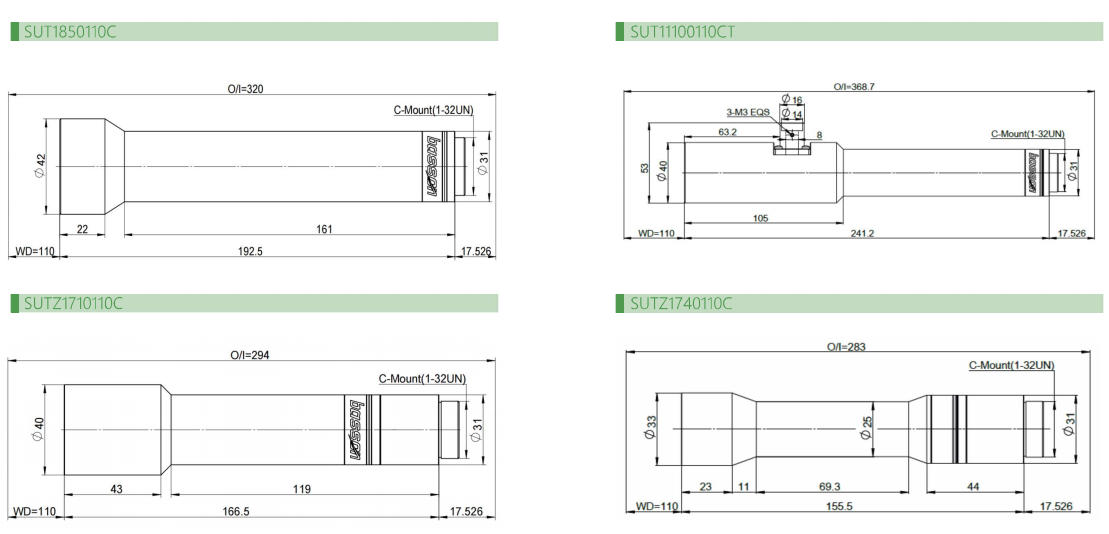

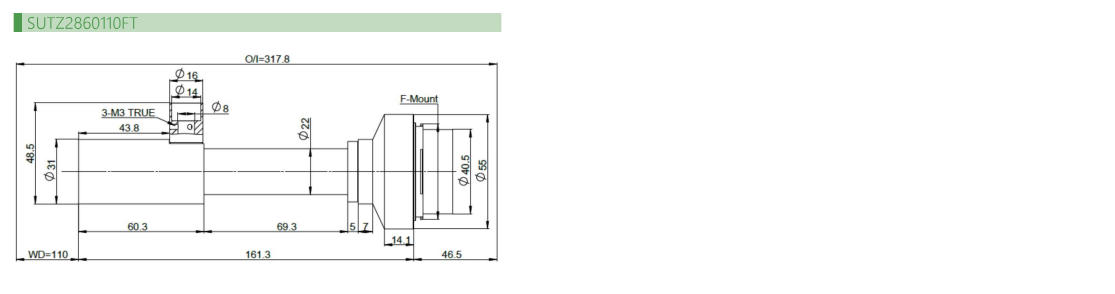

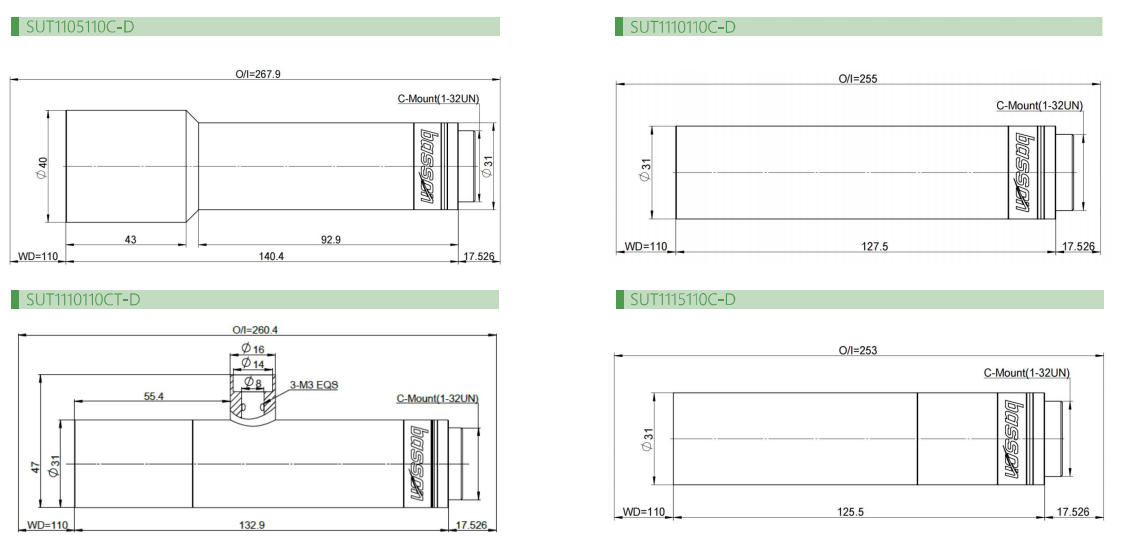

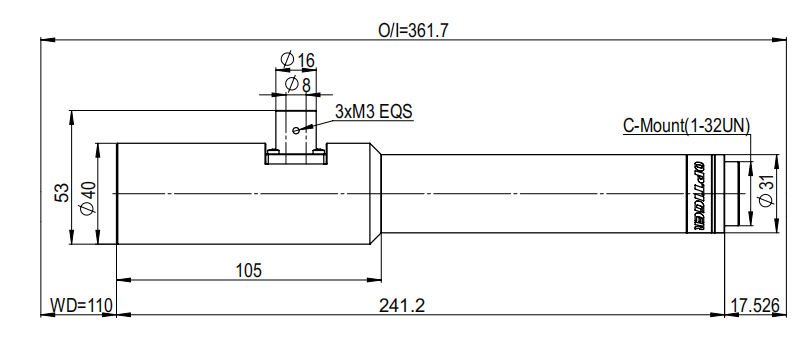

Drawinng
