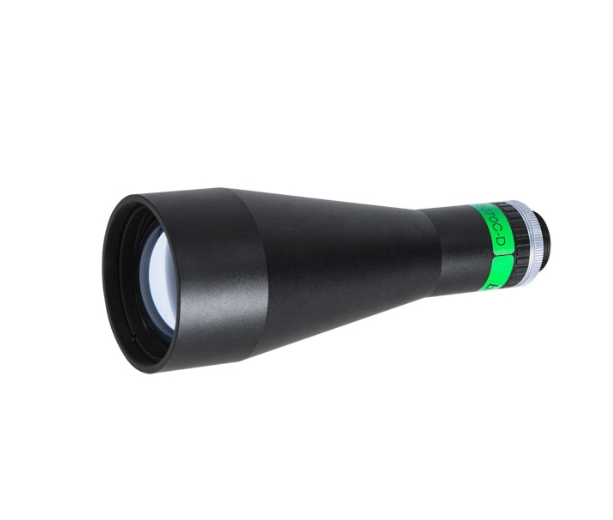

STS11.5 Series for 2/3", C-Mount Telecentric Lens

Product Attributes :

With high telecentricity and low distortion, BASSON bi-telecentric lenses are mainly applied to precision measurement and high-precision visual positioning fields.
BASSON STS11.5 Series Standard Bi-telecentric Lenses are standard C-mount lenses, available for industrial cameras with maximum sensor size of 2/3” (diagonal of 11.5mm)

Features

lActual measured with full range of DOF, full range of FOV, and full range of wave length

lAvailable for Industrial Cameras with Sensor Size from 1/3 to 35Full

lLarge FOV from 11.5mm-315mm

lDistortion: <0.05%  Telecentricity: <0.05°

lTG+ multi-layer coating, high transmittance

lOptions between high resolution and deep DOF are available

lCustomized aperture is available

lWorking distance can be adjusted within certain limits

 lIndustrial grade waterproofing
