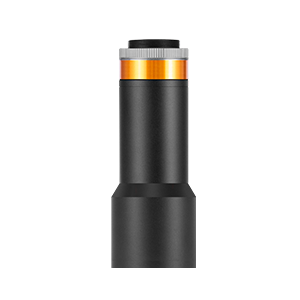

TTL06-11.5-25C/-D
Features
1.Actual measured with full range of DOF, full range of FOV, and full range of wave length
2.Available for Industrial Cameras with 1/3" Sensor Size
3.Large FOV from 11.5mm-315mm
4.Distortion: <0.05% Telecentricity: <0.05°
5.TG+ multi-layer coating, high transmittance
6.Options between high resolution and deep DOF are available
7.Customized aperture is available
8.Working distance can be adjusted within certain limits
9.Industrial grade waterproofing

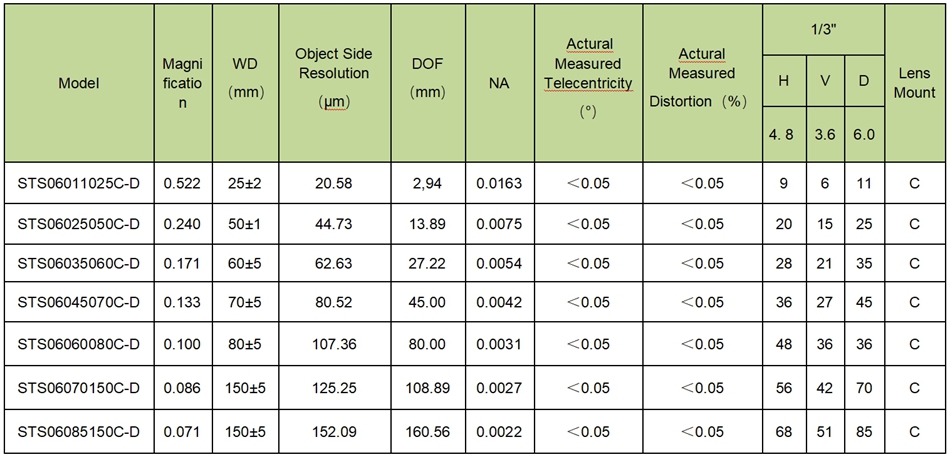

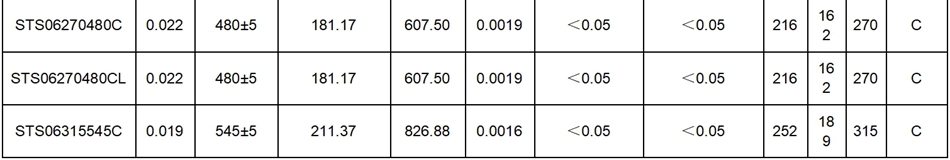

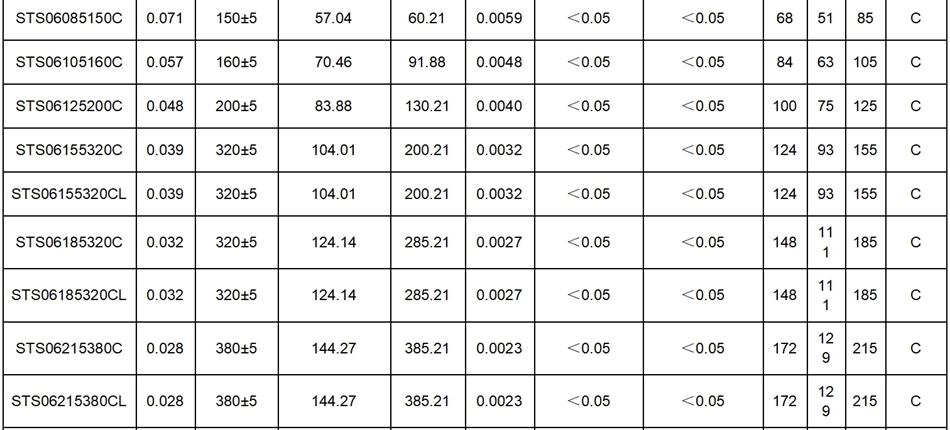

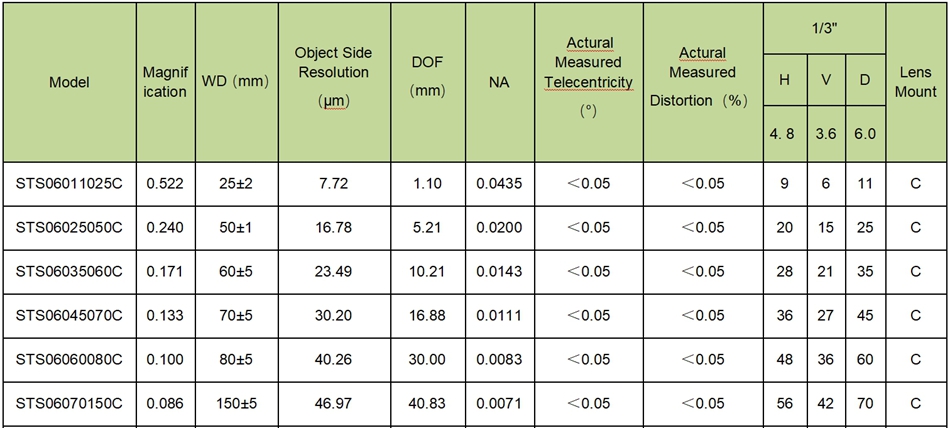

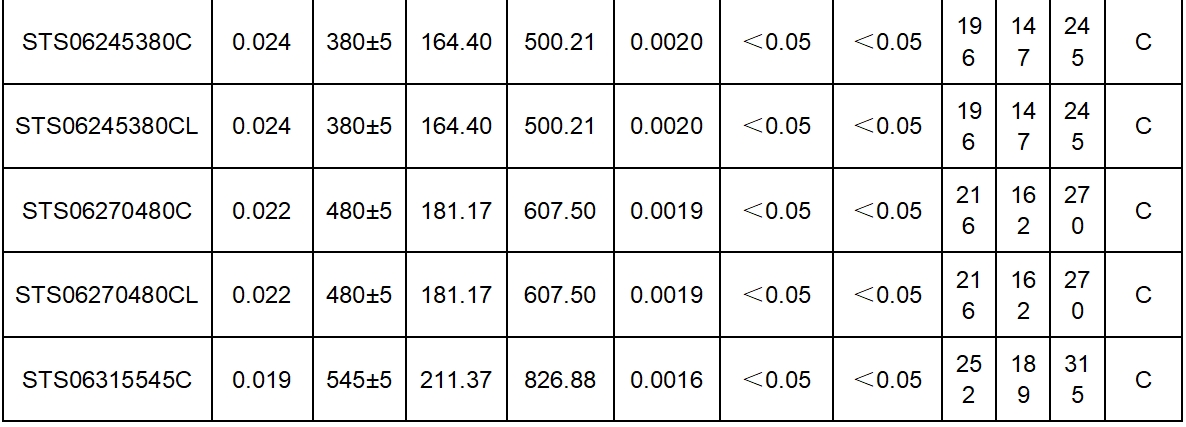

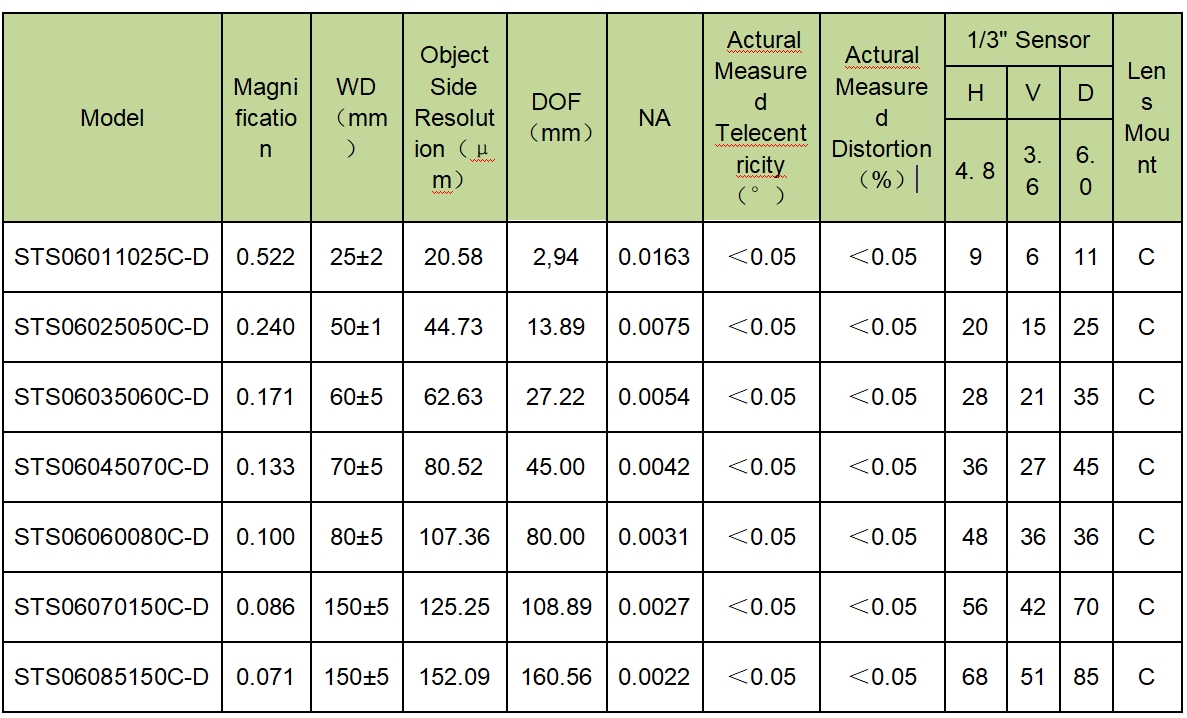

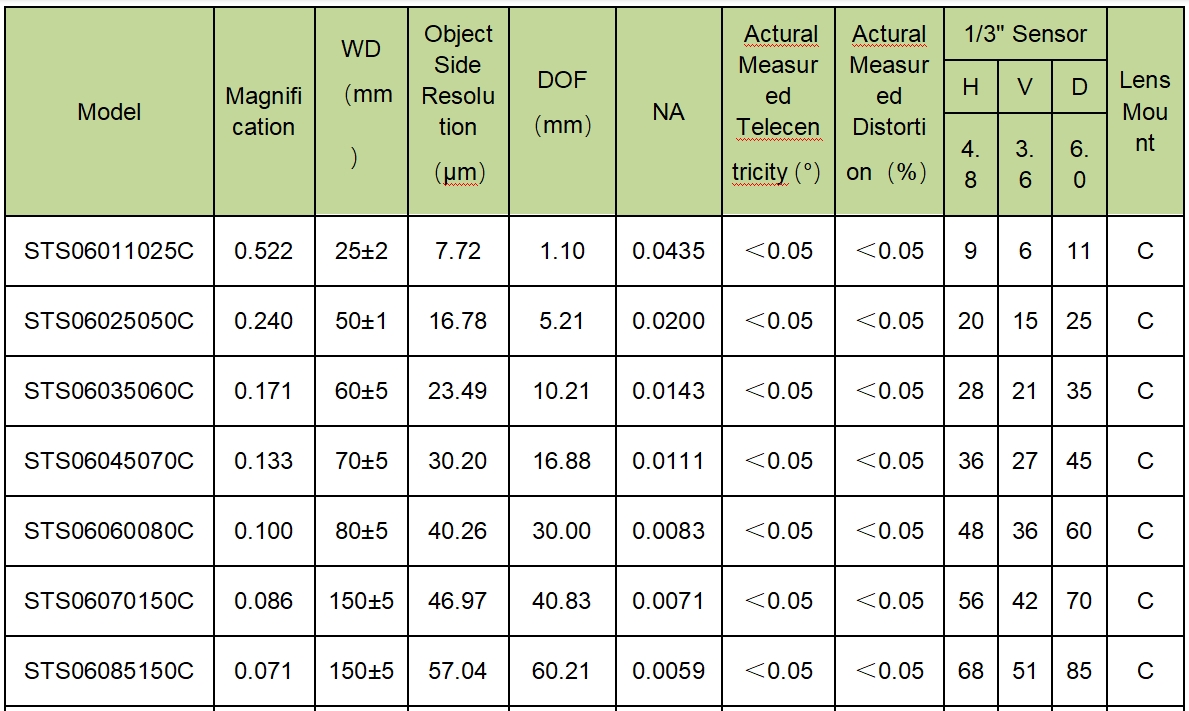

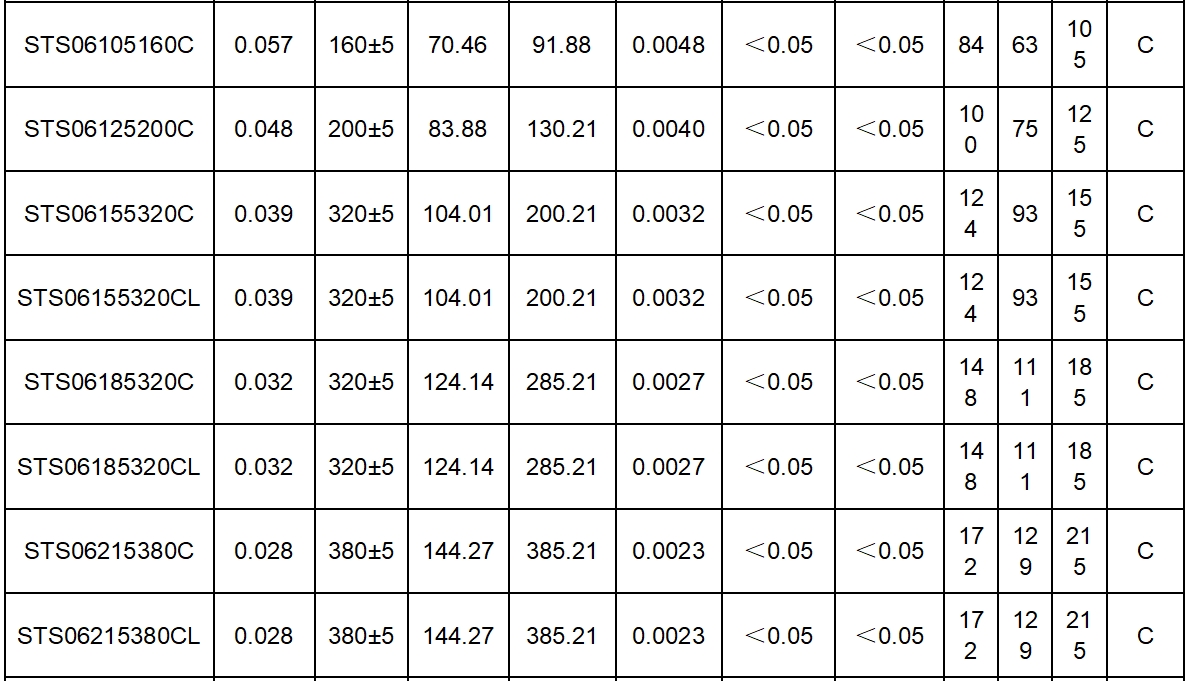

Data
|
Type |
Lenses with High Resolution |
Lenses with Deep DOF |
||
|
Model |
TTL06-11.5-25C |
TTL06-11.5-25C-D |
||
|
Max. FOV（mm） |
11.5 |
11.5 |
||
|
Magnification |
0.522 |
0.522 |
||
|
Working Distance（mm） |
25±2 |
25±2 |
||
|
1/3” |
H |
4.8 |
9.2 |
9.2 |
|
V |
3.6 |
6.9 |
6.9 |
|
|
D |
6 |
11.5 |
11.5 |
|
|
Effective F number |
6 |
16 |
||
|
Object Side Resolution（μm） |
7.72 |
20.58 |
||
|
DOF（mm） |
1.00 |
4.70 |
||
|
Measured Telecentricity（°） |
<0.05 |
<0.05 |
||
|
Measured Distortion（%） |
<0.05 |
<0.05 |
||
|
Lens Mount |
C |
C
|
||

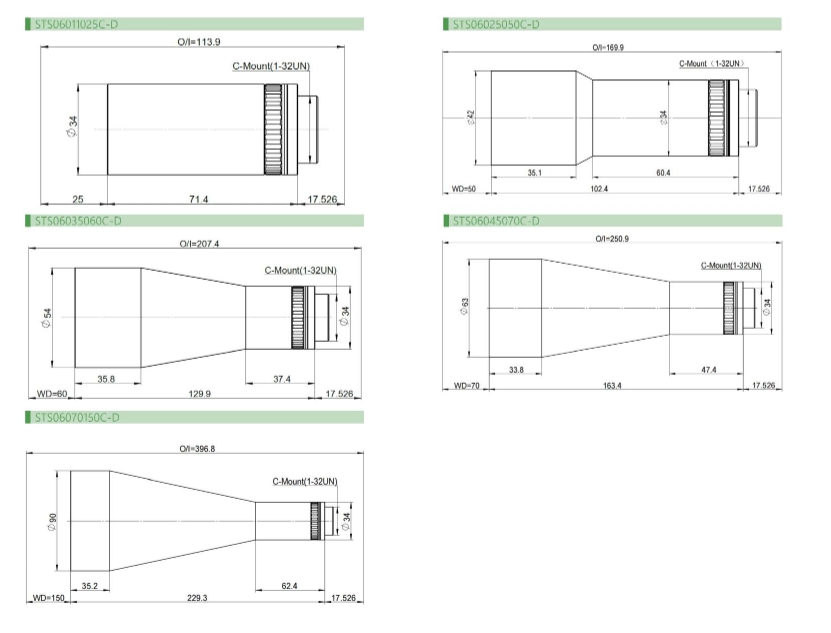

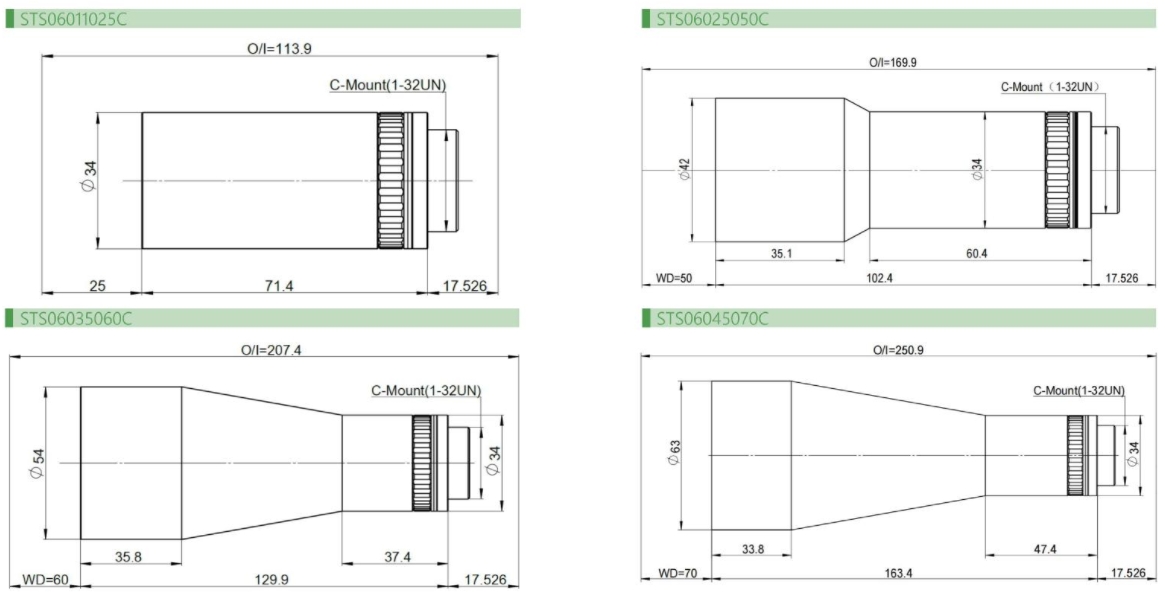

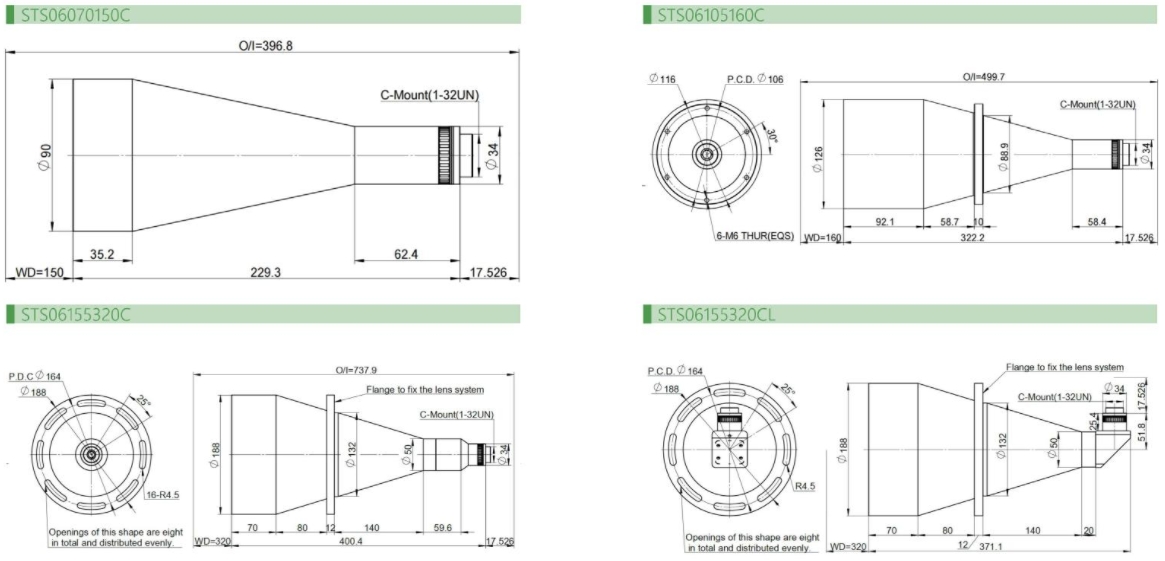

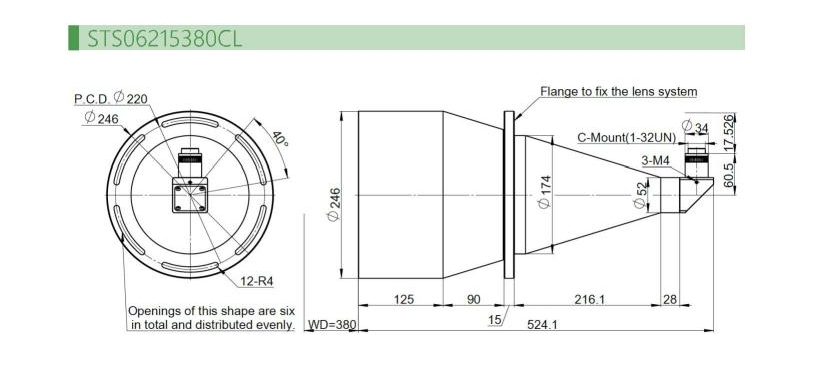

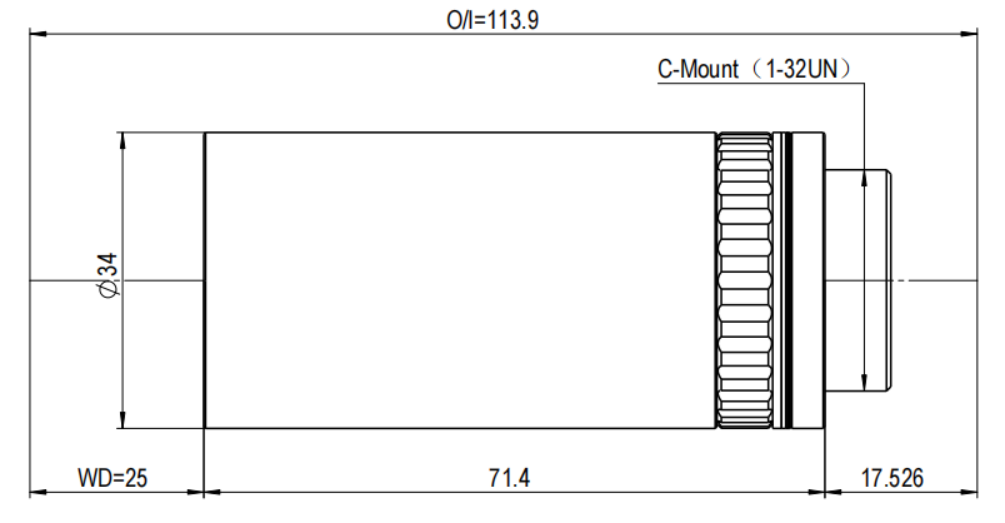

Drawinng
