OTLY11.5-20-65C
Product Attributes :
FEATURES
1. Actual measured within full range of DOF , full range of FOV, and full range of wave length
2.Distortion:<0.05% Telecentricity: <0.05°
3. lris diaphgram is partially supported
4.TG+ multi-layer coating, high transmittance
5.Industrial grade waterproofing
Product Description

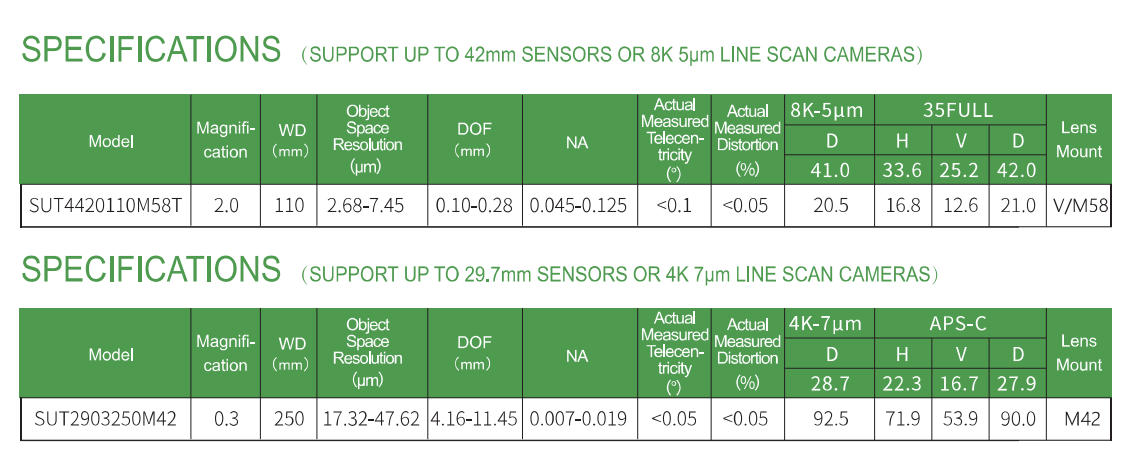

Data
|
Type |
Lenses with High Resolution |
||
|
Model |
OTLY11.5-20-65C |
||
|
Max. FOV（mm） |
5.7 |
||
|
Magnification |
2.0 |
||
|
Working Distance（mm） |
56.7-74.3 |
||
|
2/3" |
H |
8.4 |
4.2 |
|
V |
7.0 |
3.5 |
|
|
D |
11.0 |
5.5 |
|
|
11.5mm |
H |
8.8 |
4.4 |
|
V |
7.3 |
3.7 |
|
|
D |
11.5 |
5.7 |
|
|
Effective F number |
13 |
||
|
Object Side Resolution（μm） |
4.360 |
||
|
DOF（mm） |
0.26 |
||
|
Measured Telecentricity（°） |
<0.05 |
||
|
Measured Distortion（%） |
<0.05 |
||
|
Lens Mount |
C |
||

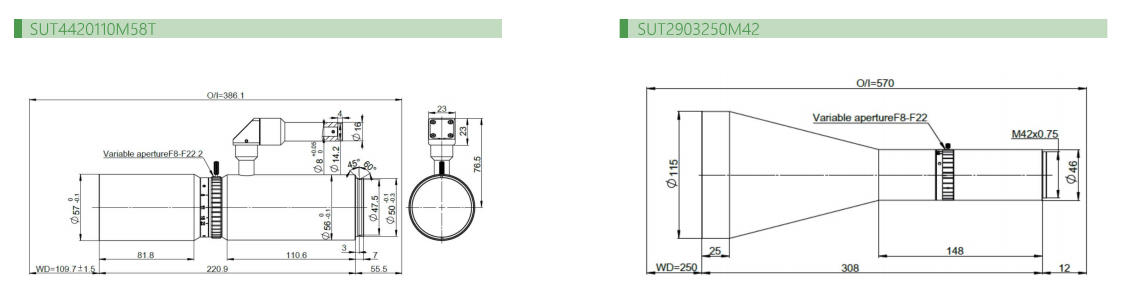

Drawing
