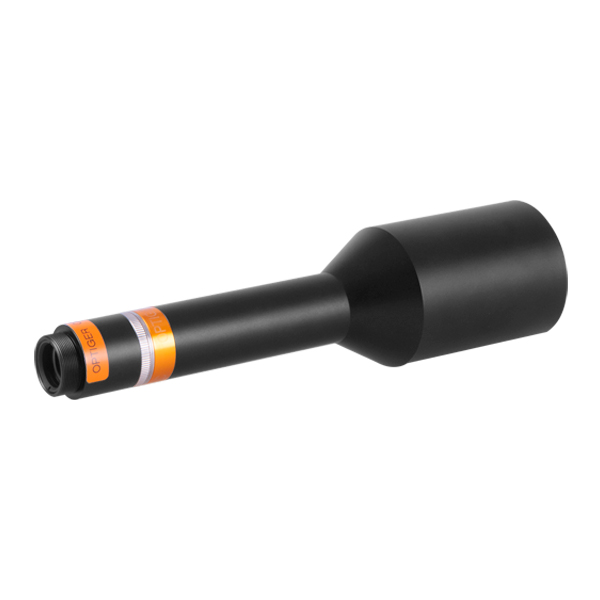

OTLZ17.6-10-300C
Features
1.Actual measured with full range of DOF, full range of FOV, and full range of wave length
2.Available for Industrial Cameras with 1" Sensor Size
3.Large FOV from 11.5mm-315mm
4.Distortion: <0.05% Telecentricity: <0.05°
5.TG+ multi-layer coating, high transmittance
6.Options between high resolution and deep DOF are available
7.Customized aperture is available
8.Working distance can be adjusted within certain limits
9.Industrial grade waterproofing
Data
|
Type |
Lenses with High Resolution |
||
|
Model |
OTLZ17.6-10-300C |
||
|
Max. FOV（mm） |
17.60 |
||
|
Magnification |
1.0 |
||
|
Working Distance（mm） |
300 |
||
|
1” |
H |
12.80 |
12.80 |
|
V |
9.60 |
9.60 |
|
|
D |
16.00 |
16.00 |
|
|
1.1” |
H |
14.08 |
14.08 |
|
V |
10.56 |
10.56 |
|
|
D |
17.60 |
17.60 |
|
|
Effective F number |
26 |
||
|
Object Side Resolution（μm） |
17.446 |
||
|
DOF（mm） |
2.08 |
||
|
Measured Telecentricity（°） |
<0.05 |
||
|
Measured Distortion（%） |
<0.05 |
||
|
Lens Mount |
C |
||

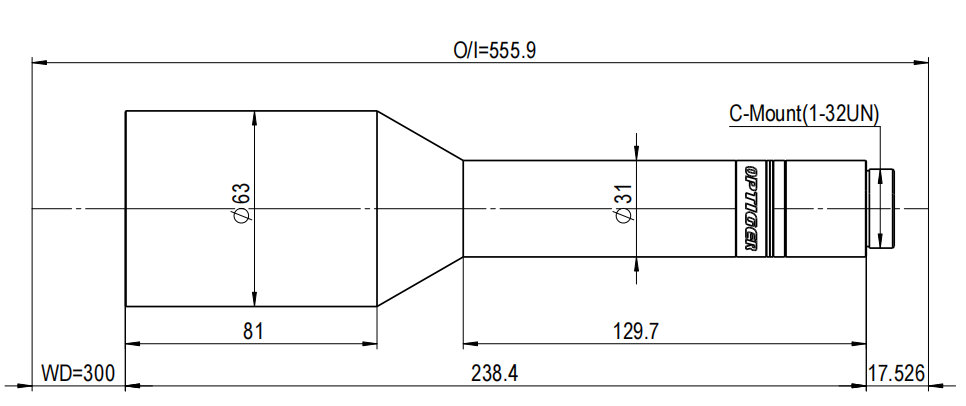

Drawing
