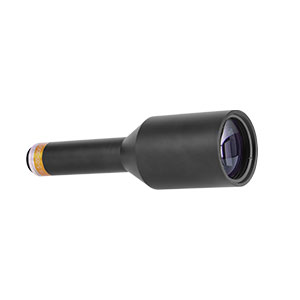

OTL18.5-05-300C/-D
Features
1.Actual measured with full range of DOF, full range of FOV, and full range of wave length
2.Available for Industrial Cameras with 1.1" Sensor Size
3.Large FOV from 11.5mm-315mm
4.Distortion: <0.05% Telecentricity: <0.05°
5.TG+ multi-layer coating, high transmittance
6.Options between high resolution and deep DOF are available
7.Customized aperture is available
8.Working distance can be adjusted within certain limits
9.Industrial grade waterproofing
Data
|
Type |
Lenses with High Resolution |
Lenses with Deep DOF |
||
|
Model |
OTL18.5-05-300C |
OTL18.5-05-300C-D |
||
|
Max. FOV（mm） |
37.00 |
37.00 |
||
|
Magnification |
0.5 |
0.5 |
||
|
Working Distance（mm） |
300 |
300 |
||
|
1.1” |
H |
28.32 |
28.32 |
28.32 |
|
V |
20.74 |
20.74 |
20.74 |
|
|
D |
35.20 |
35.20 |
35.20 |
|
|
18.5mm |
H |
14.80 |
29.60 |
29.60 |
|
V |
11.10 |
22.20 |
22.20 |
|
|
D |
18.50 |
37.00 |
37.00 |
|
|
Effective F number |
13 |
20 |
||
|
Object Side Resolution（μm） |
17.446 |
26.840 |
||
|
DOF（mm） |
4.16 |
6.40 |
||
|
Measured Telecentricity（°） |
<0.05 |
<0.05 |
||
|
Measured Distortion（%） |
<0.05 |
<0.05 |
||
|
Lens Mount |
C |
C |
||
