Data
|
Model |

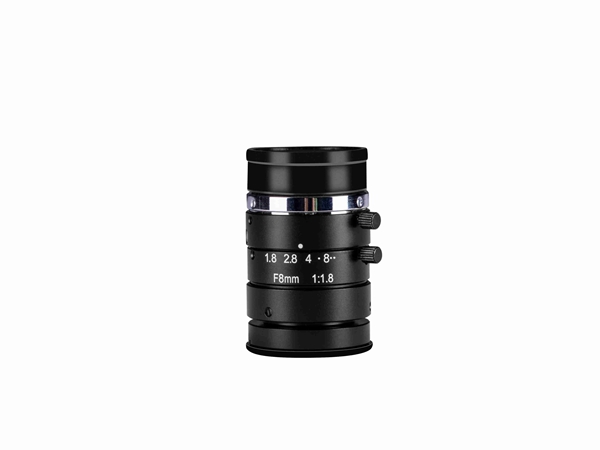

ALP0811 |
|
|
Focal Length |
8mm |
|
|
Working Distance |
0.1m-∞ |
|
|
Aperture |
F1.8-16 |
|
|
Maximum target FOV angle（°） |
D |
68.8 |
|
H |
57.1 |
|
|
V |
44.2 |
|
|
Filter Size（mm） |
M25.5*0.5 |
|
|
Image Circle Φ |
2/3" |
|
|
Mount |
C |
|
C Series Fixed Focal Length Lenses are designed for machine vision applications in factory automation and inspection, where working distance and resolution are important factors. These lenses have large maximum apertures, making them suitable for use in even the toughest lighting conditions.
Each lens has a broadband anti-reflective coating, an iris lock, and focus adjustment with recessed set screws. The ruggedized housing is designed for space-restricted applications. C Series lenses are manufactured with high tolerances to ensure high imaging performance and low variation between lenses.
Through their combination of optical performance, industrial features, and compact size, These Lenses are an ideal choice for factory automation and inspection tasks.
