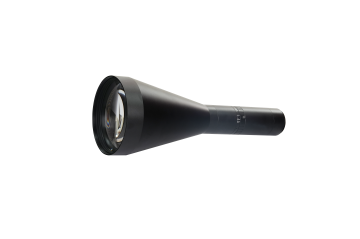

OTL29.7-03-250M42
Product Attributes :
Features
1. Actual measured within full range of DOF, full range of FOV, and full range of wave length
2.Distortion:<0.05% Telecentricity:<0.05°
3. lris diaphgram is partially supported
4.TG+ multi-layer coating, high transmittance
5.Industrial grade waterproofing
Product Description
Data
|
Type |
Lenses with High Resolution |
||
|
Model |
OTL29.7-03-250M42 |
||
|
Max. FOV（mm） |
90.0 |
||
|
Magnification |
0.3 |
||
|
Working Distance（mm） |
250 |
||
|
4K-7um |
D |
28.7 |
92.5 |
|
APS-C |
H |
22.3 |
71.9 |
|
V |
16.7 |
53.9 |
|
|
D |
27.9 |
90.0 |
|
|
Effective F number |
8-22 |
||
|
Object Side Resolution（μm） |
17.32-47.62 |
||
|
DOF（mm） |
6.66-18.31 |
||
|
Measured Telecentricity（°） |
<0.05 |
||
|
Measured Distortion（%） |
<0.05 |
||
|
Lens Mount |
M42 |
||

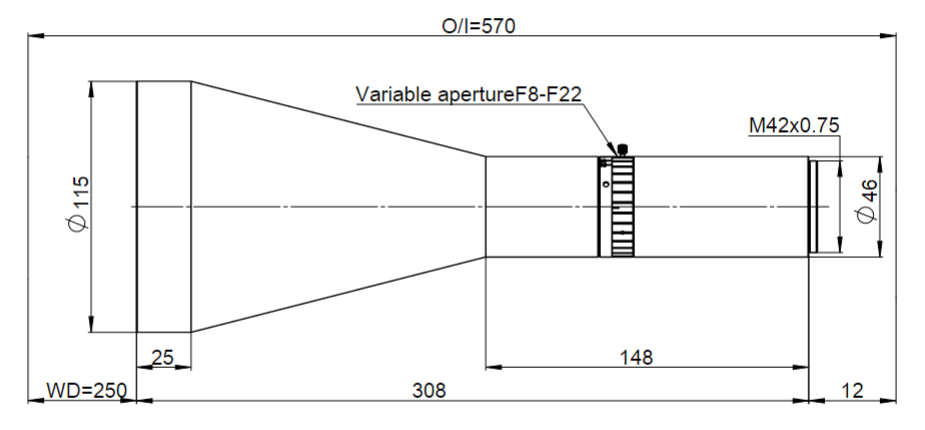

Drawing
