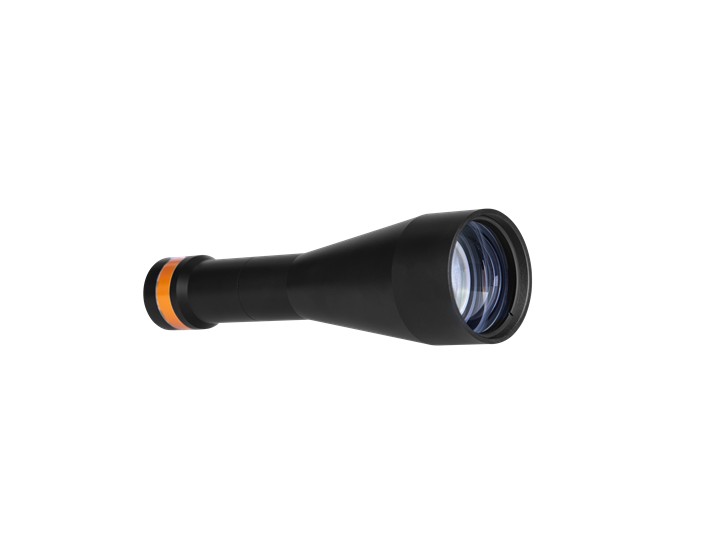

TTL18.5-45-70C/-D
Features
1.Actual measured with full range of DOF, full range of FOV, and full range of wave length
2.Available for Industrial Cameras with 1.1" Sensor Size
3.Large FOV from 11.5mm-315mm
4.Distortion: <0.05% Telecentricity: <0.05°
5.TG+ multi-layer coating, high transmittance
6.Options between high resolution and deep DOF are available
7.Customized aperture is available
8.Working distance can be adjusted within certain limits
9.Industrial grade waterproofing
Data
|
Type |
Lenses with High Resolution |
Lenses with Deep DOF |
||
|
Model |
TTL18.5-45-70C |
TTL18.5-45-70C-D |
||
|
Max. FOV（mm） |
45 |
45 |
||
|
Magnification |
0.411 |
0.411 |
||
|
Working Distance（mm） |
70±5 |
70±5 |
||
|
1.1” |
H |
14.1 |
34 |
34 |
|
V |
10.3 |
25 |
25 |
|
|
D |
17.6 |
42 |
42 |
|
|
18.5mm |
H |
14.8 |
36 |
36 |
|
V |
11.1 |
27 |
27 |
|
|
D |
18.5 |
45 |
45 |
|
|
Effective F number |
7 |
16 |
||
|
Object Side Resolution（μm） |
11.43 |
26.11 |
||
|
DOF（mm） |
3.32 |
7.57 |
||
|
Measured Telecentricity（°） |
<0.05 |
<0.05 |
||
|
Measured Distortion（%） |
<0.05 |
<0.05 |
||
|
Lens Mount |
C |
C
|
||

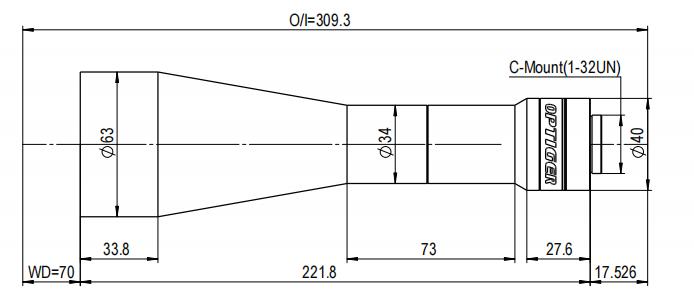

Drawinng
