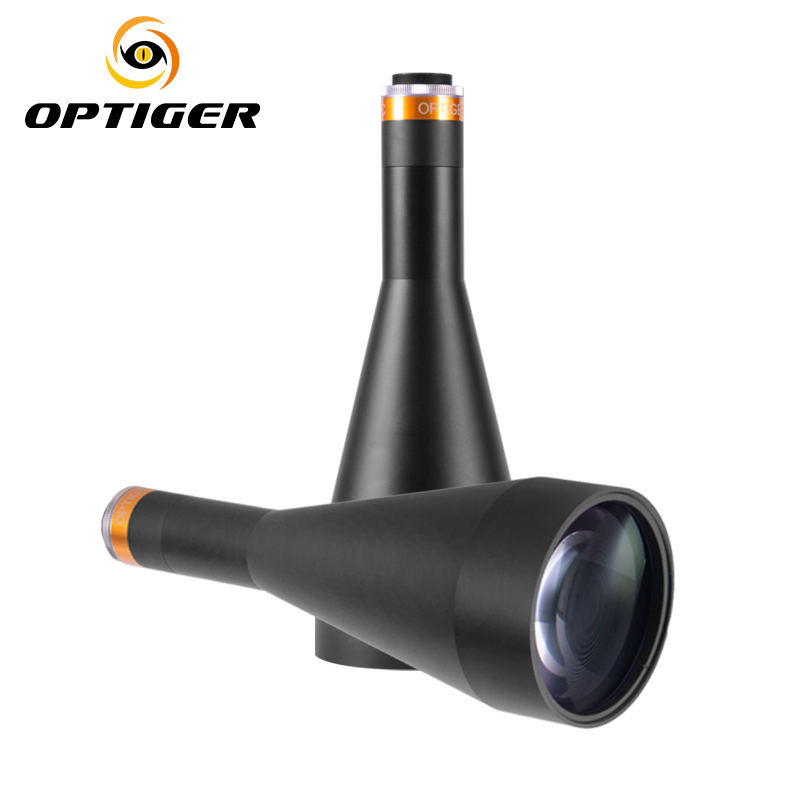

TTL11.5-70-150C/-D
Features
1.Actual measured with full range of DOF, full range of FOV, and full range of wave length
2.Available for Industrial Cameras with 2/3" Sensor Size
3.Large FOV from 11.5mm-315mm
4.Distortion: <0.05% Telecentricity: <0.05°
5.TG+ multi-layer coating, high transmittance
6.Options between high resolution and deep DOF are available
7.Customized aperture is available
8.Working distance can be adjusted within certain limits
9.Industrial grade waterproofing
Data
|
Type |
Lenses with High Resolution |
Lenses with Deep DOF |
||
|
Model |
TTL11.5-70-150C |
TTL11.5-70-150C-D |
||
|
Max. FOV（mm） |
11.5 |
11.5 |
||
|
Magnification |
0.164 |
0.164 |
||
|
Working Distance（mm） |
150±5 |
150±5 |
||
|
2/3” |
H |
8.4 |
51 |
51 |
|
V |
7.0 |
43 |
43 |
|
|
D |
11.0 |
67 |
67 |
|
|
11.5mm |
H |
8.8 |
53 |
53 |
|
V |
7.3 |
44 |
44 |
|
|
D |
11.5 |
70 |
70 |
|
|
Effective F number |
7 |
16 |
||
|
Object Side Resolution（μm） |
28.64 |
65.35 |
||
|
DOF（mm） |
20.82 |
47.43 |
||
|
Measured Telecentricity（°） |
<0.05 |
<0.05 |
||
|
Measured Distortion（%） |
<0.05 |
<0.05 |
||
|
Lens Mount |
C |
C
|
||

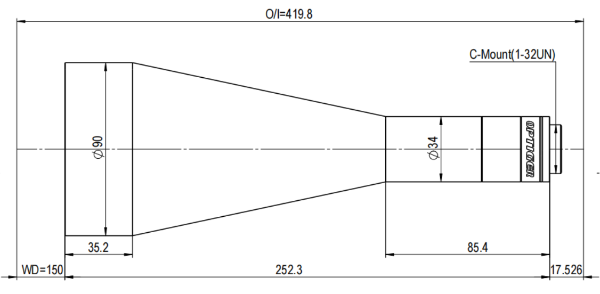

Drawinng
